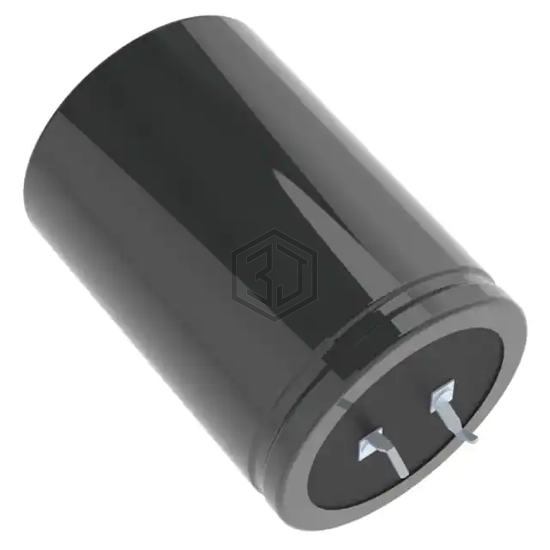

CAP ALUM 10000UF 20% 80V SNAP
LKS1K103MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 1,179
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 4.7 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K103MKZ | Nichicon | CAP ALUM 10000UF 20% 80V SOLDER | 91% | View |
| ESMH630VSN103MA40S | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 85% | View |
| LKG1H103MESCBK | Nichicon | CAP ALUM 10000UF 20% 50V SNAP | 78% | View |
| ALC70D103CF063 | KEMET | CAP ALUM 10000UF 20% 63V SNAP | 78% | View |
| ALC70C103EH100 | KEMET | CAP ALUM 10000UF 20% 100V SNAP | 71% | View |
| EKYB160ELL103ML40S | United Chemi-Con | CAP ALUM 10000UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for LKS1K103MESC and get a quote within 24 hours.
