CAP ALUM 10000UF 20% 16V SNAP

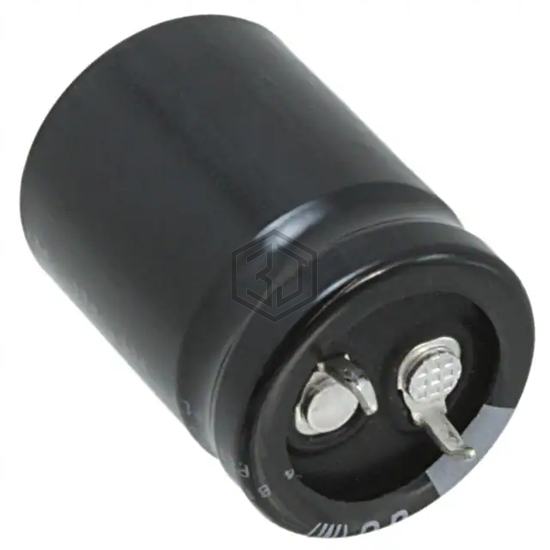

LGU1C103MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,063
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1E103MRD | Nichicon | CAP ALUM 10000UF 20% 25V RADIAL | 85% | View |
| 6.3YXF10000MEFC16X31.5 | Rubycon | CAP ALUM 10000UF 20% 6.3V RADIAL | 68% | View |
| EKMH350VNN103MR35S | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 65% | View |
| 35MXC10000MEFCSN25X40 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 61% | View |
| 109RZM6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 6.3V RADIAL | 56% | View |
| 381LX103M063K052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 56% | View |
