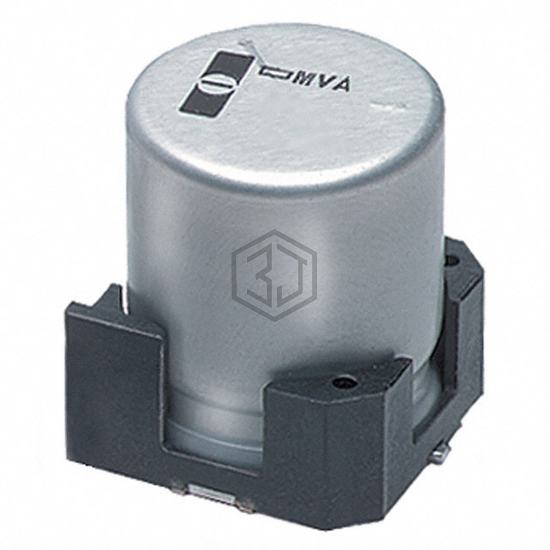

CAP ALUM 2200UF 20% 25V SMD
MVA25VE222ML22TR is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,427
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 211mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
MVA25VE222ML22TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY250GDA222MMN0S | United Chemi-Con | CAP ALUM 2200UF 20% 25V SMD | 97% | View |
| EEE-HD1E222AM | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V SMD | 94% | View |
| VEJ222M1ETR-1616S | Surge | CAP ALUM 25V POLAR | 85% | View |
| MAL226099606E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SMD | 81% | View |
| EMVH100GDA222MMH0S | United Chemi-Con | CAP ALUM 2200UF 20% 10V SMD | 56% | View |
| 10TLV2200M12.5X16 | Rubycon | CAP ALUM 2200UF 20% 10V SMD | 54% | View |
Submit your RFQ for MVA25VE222ML22TR and get a quote within 24 hours.
