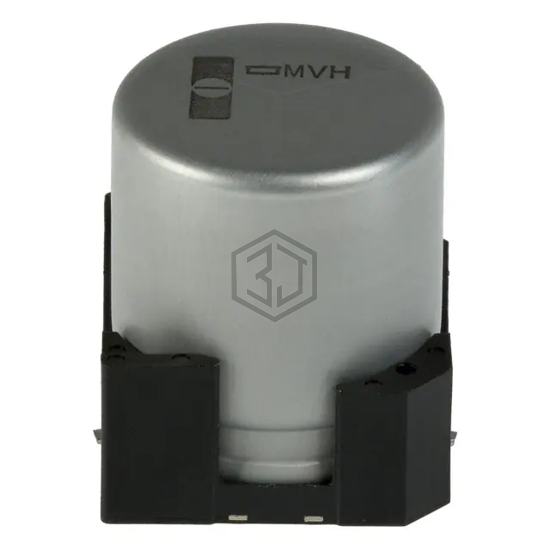

CAP ALUM 2200UF 20% 10V SMD
EMVH100GDA222MMH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 100mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ222M1ATR-1821S | Surge | CAP ALUM 10V POLAR | 97% | View |
| EMVH160GDA222MMH0S | United Chemi-Con | CAP ALUM 2200UF 20% 16V SMD | 86% | View |
| VUA222M1ATR-1616S | Surge | CAP ALUM 10V POLAR | 84% | View |
| MAL214099518E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V SMD | 75% | View |
| MAL226099606E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SMD | 74% | View |
| MAL224699607E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V SMD | 65% | View |
Submit your RFQ for EMVH100GDA222MMH0S and get a quote within 24 hours.
