CAP ALUM 2200UF 20% 10V SMD

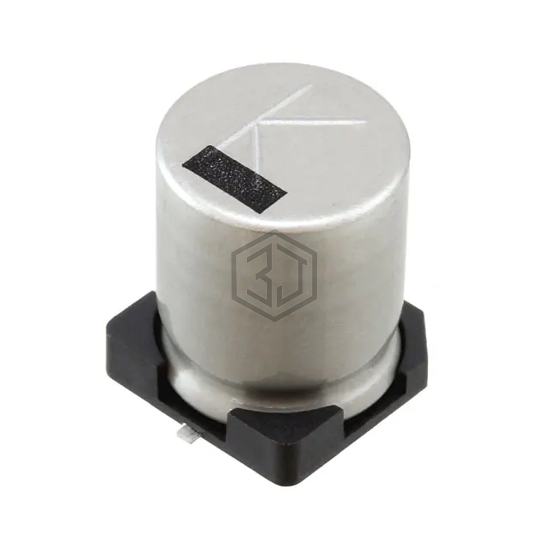

10TLV2200M12.5X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 149
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for 10TLV2200M12.5X16 and get a quote within 24 hours.
