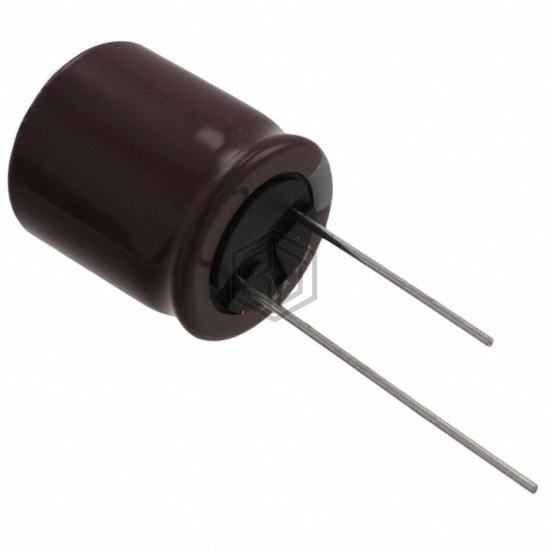

CAP ALUM 470UF 20% 100V RADIAL
KZE100VB471M18X25LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,008
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 875 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.75 A @ 100 kHz |
| Impedance | 36 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE100VB471M18X25LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZH350ELL471MJ16S | Chemi-Con | CAP ALUM 35V POLAR | 78% | View |
| 80ZLJ470M12.5X40 | Rubycon | CAP ALUM 470UF 20% 80V RADIAL | 75% | View |
| 477KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 50V RADIAL | 75% | View |
| EEU-TP1V471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 64% | View |
| LKX2E471MESA35 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 63% | View |
| MAL214666471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 61% | View |
