Panasonic Electronic Components

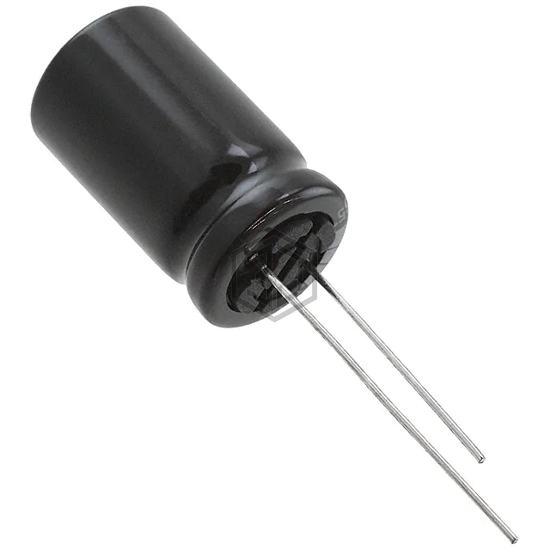

CAP ALUM 470UF 20% 35V RADIAL
EEU-TP1V471 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,653
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.395 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.49 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 100% | View |
| UBW1V471MHD1TO | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 80% | View |
| MAL216031471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 77% | View |
| UBW1J471MHD | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 66% | View |
| UBX1J471MHL | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 60% | View |
| UBY1K391MHL | Nichicon | CAP ALUM 390UF 20% 80V RADIAL | 57% | View |
Submit your RFQ for EEU-TP1V471 and get a quote within 24 hours.
