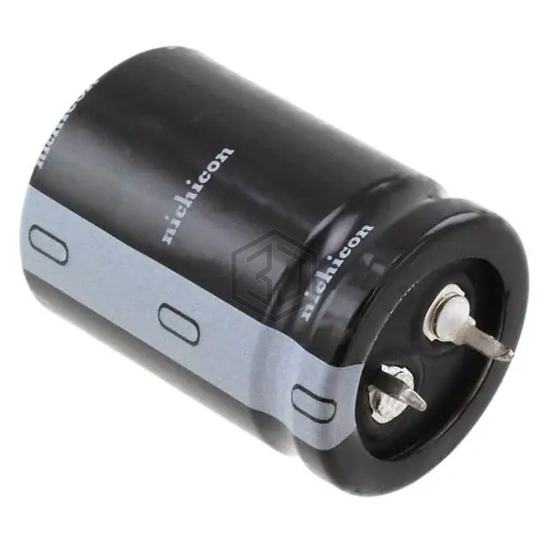

CAP ALUM 470UF 20% 250V SNAP
LKX2E471MESA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TP1V471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 71% | View |
| 80ZLJ470M12.5X40 | Rubycon | CAP ALUM 470UF 20% 80V RADIAL | 68% | View |
| 477KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 100V RADIAL | 68% | View |
| 477KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 50V RADIAL | 67% | View |
| B43544B9477M060 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 63% | View |
| ELXV630EC5471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 55% | View |
