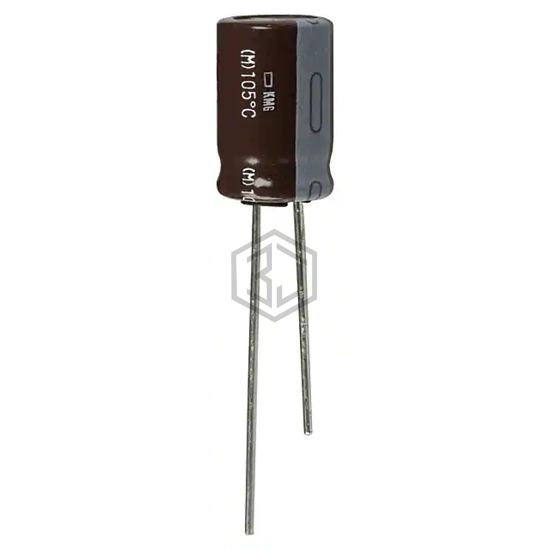

CAP ALUM 330UF 20% 50V RADIAL
KMG50VB331M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,425
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 603mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 410 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG50VB331M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 79% | View |
| MAL215060331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 72% | View |
| 678D337M016CD5D | Vishay Sprague | CAP ALUM 330UF 20% 16V RADIAL | 72% | View |
| B41858D4337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 16V RADIAL | 60% | View |
| MAL216036331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 56% | View |
| UBX1C331MPL | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 51% | View |
Submit your RFQ for KMG50VB331M10X16LL and get a quote within 24 hours.
