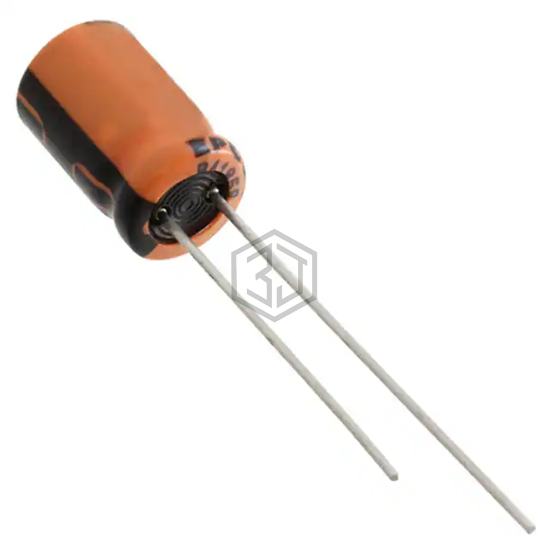

CAP ALUM 330UF 20% 16V RADIAL
B41858D4337M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 274mOhm @ 10kHz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 436 mA @ 100 kHz |
| Impedance | 246 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1C331MPL | Nichicon | CAP ALUM 330UF 20% 16V RADIAL | 97% | View |
| 678D337M016CD5D | Vishay Sprague | CAP ALUM 330UF 20% 16V RADIAL | 86% | View |
| UBX1A331MPL | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 68% | View |
| EEU-HD1A331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V RADIAL | 68% | View |
| URZ1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| MAL216036331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 54% | View |
