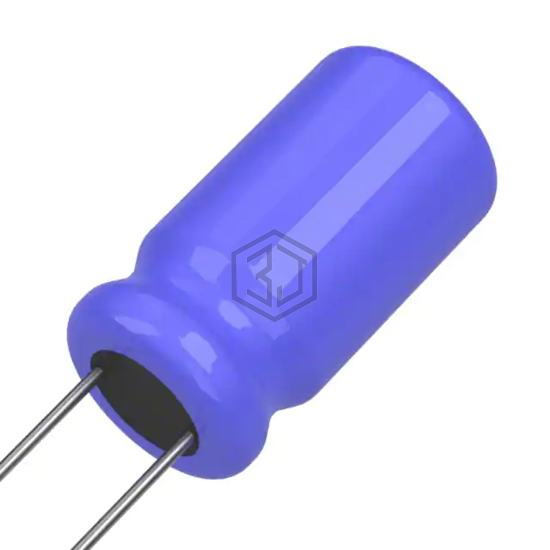

CAP ALUM 330UF 20% 16V RADIAL
678D337M016CD5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,820
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 370mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 364 mA @ 120 Hz |
| Ripple Current @ High Frequency | 520 mA @ 100 kHz |
| Impedance | 136 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858D4337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 16V RADIAL | 86% | View |
| URZ1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 69% | View |
| EEU-HD1A331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V RADIAL | 58% | View |
| MAL216036331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 54% | View |
| MAL215060331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 51% | View |
| UBX1A331MPL | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 51% | View |
