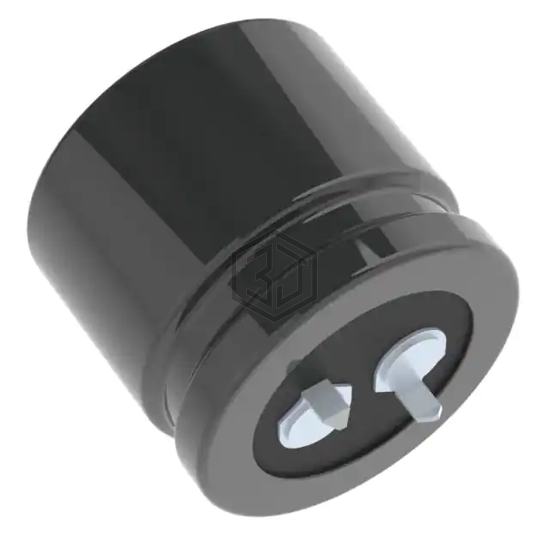

CAP ALUM 560UF 20% 200V SNAP
ESMH201VNN561MR25U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,901
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 567LBB160M2CC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 160V SNAP | 92% | View |
| 220MXC560MEFC22X45 | Rubycon | CAP ALUM 560UF 20% 220V SNAP | 91% | View |
| 160USC560MEFC25X25 | Rubycon | CAP ALUM 560UF 20% 160V SNAP | 90% | View |
| B43508E2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| 250MXG560MEFCSN30X25 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 83% | View |
| LQS2G561MELB50 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 70% | View |
Submit your RFQ for ESMH201VNN561MR25U and get a quote within 24 hours.
