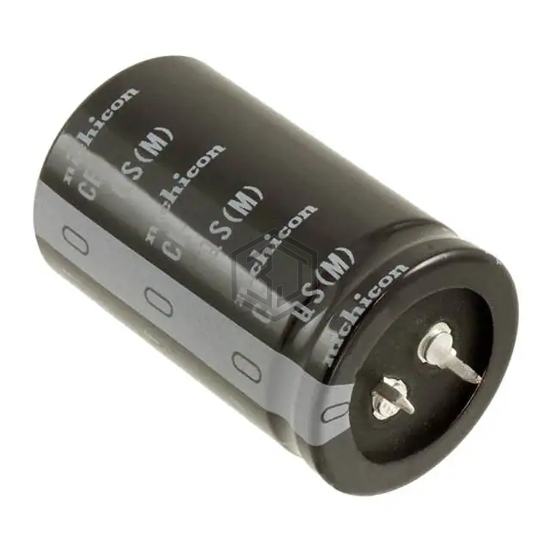

CAP ALUM 560UF 20% 400V SNAP
LQS2G561MELB50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,588
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.145 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH451VND561MA60U | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 92% | View |
| MAL219390105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 500V SNAP | 86% | View |
| 250MXG560MEFCSN30X25 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 79% | View |
| SLP561M220C5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 220V SNAP | 76% | View |
| B43508E2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| 220MXC560MEFC22X45 | Rubycon | CAP ALUM 560UF 20% 220V SNAP | 75% | View |
Submit your RFQ for LQS2G561MELB50 and get a quote within 24 hours.
