Cornell Dubilier / Illinois Capacitor
CAP ALUM 560UF 20% 160V SNAP

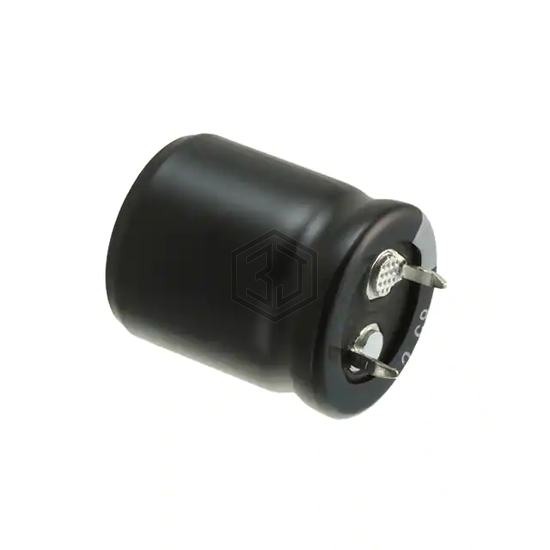

567LBB160M2CC is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 560UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 2,310
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 296.05mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8665 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLS2C561MELY | Nichicon | CAP ALUM 560UF 20% 160V SNAP | 95% | View |
| 160USC560MEFC25X25 | Rubycon | CAP ALUM 560UF 20% 160V SNAP | 95% | View |
| B43601B2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 90% | View |
| B43540A2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 86% | View |
| 220MXC560MEFC22X45 | Rubycon | CAP ALUM 560UF 20% 220V SNAP | 86% | View |
| B43508A2567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
Submit your RFQ for 567LBB160M2CC and get a quote within 24 hours.
