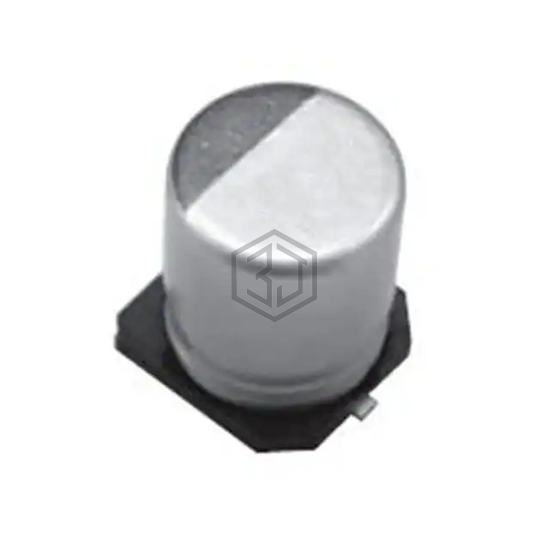

CAP ALUM 560UF 20% 35V SMD
EMXB350ARA561MLH0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 169
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | 920 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EMXB350ARA561MLH0S and get a quote within 24 hours.
