CAP ALUM 560UF 20% 25V SMD

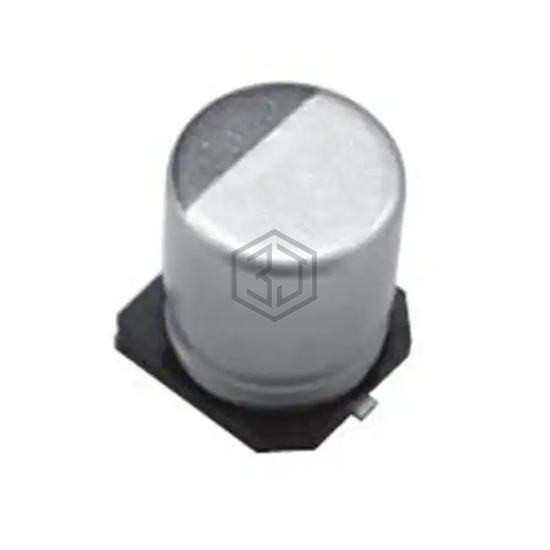

EMXB250ARA561MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 140mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 430 mA @ 120 Hz |
| Ripple Current @ High Frequency | 860 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMXB350ARA561MLH0S | United Chemi-Con | CAP ALUM 560UF 20% 35V SMD | 87% | View |
| VUJ471M1VTR-1616S | SURGE | CAP ALUM 470UF 20% 35V SMD | 73% | View |
| UBC1C471MNS1ZD | Nichicon | CAP ALUM 470UF 20% 16V SMD | 73% | View |
| MAL216099502E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 69% | View |
| MAL216099501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V SMD | 68% | View |
| MAL216099106E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V SMD | 59% | View |
Submit your RFQ for EMXB250ARA561MKE0S and get a quote within 24 hours.
