Vishay Beyschlag/Draloric/BC Components

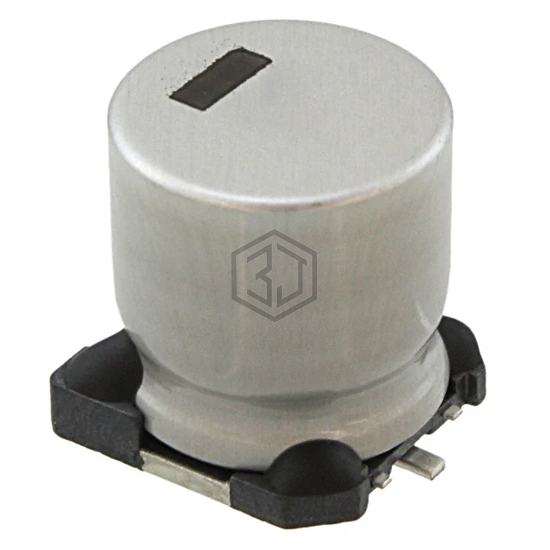

CAP ALUM 470UF 20% 16V SMD
MAL216099501E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,150
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1250 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.508" L x 0.508" W (12.90mm x 12.90mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ471M1CTR-1313S | SURGE | CAP ALUM 470UF 20% 16V SMD | 100% | View |
| MAL216099502E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 83% | View |
| MAL216099105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V SMD | 73% | View |
| VUJ471M1VTR-1616S | SURGE | CAP ALUM 470UF 20% 35V SMD | 71% | View |
| MAL226099807E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V SMD | 69% | View |
| MAL216099106E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V SMD | 52% | View |
Submit your RFQ for MAL216099501E3 and get a quote within 24 hours.
