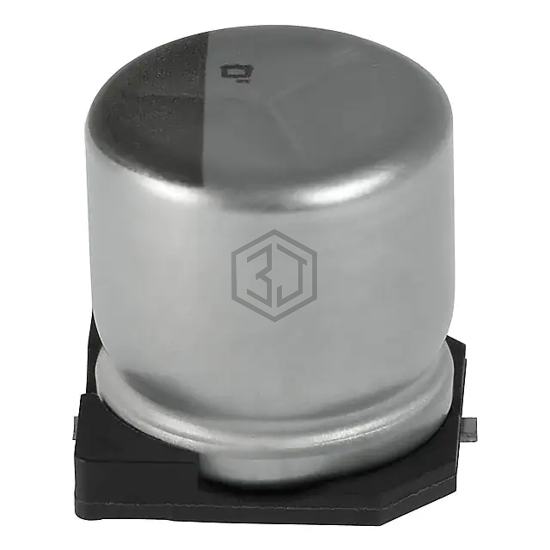

CAP ALUM 1000UF 20% 10V SMD
EMVY100ADA102MJA0G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 402 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1A102AL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 85% | View |
| EEE-FK0J102GV | Panasonic Electronic Components | CAP ALUM 1000UF 20% 6.3V SMD | 81% | View |
| 865060153010 | Würth Elektronik | CAP ALUM 1000UF 20% 6.3V SMD | 80% | View |
| 16SGV1000M16X16.5 | Rubycon | CAP ALUM 1000UF 20% 16V SMD | 72% | View |
| EEE-HD1E102AQ | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V SMD | 67% | View |
| 50SGV1000M18X21.5 | Rubycon | CAP ALUM 1000UF 20% 50V SMD | 53% | View |
