CAP ALUM 1000UF 20% 50V SMD

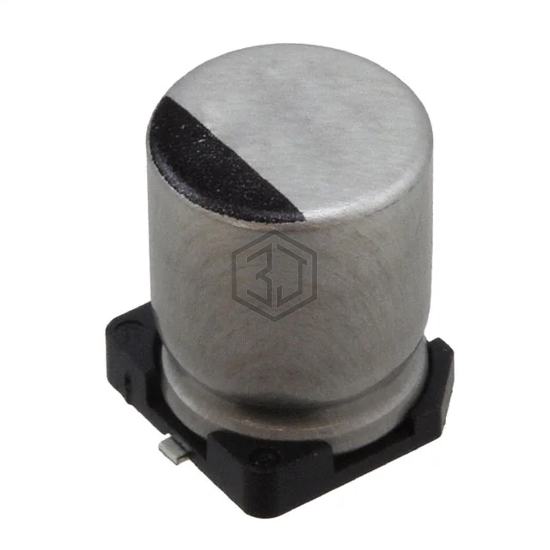

50SGV1000M18X21.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,467
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 984 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1H102V | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V SMD | 79% | View |
| AFK108M50P44B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 50V SMD | 79% | View |
| EEE-FT1A102AL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 68% | View |
| MAL224699605E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V SMD | 66% | View |
| 16SGV1000M16X16.5 | Rubycon | CAP ALUM 1000UF 20% 16V SMD | 66% | View |
| EEV108M6R3A9MAA | KEMET | CAP ALUM 1000UF 20% 6.3V SMD | 51% | View |
Submit your RFQ for 50SGV1000M18X21.5 and get a quote within 24 hours.
