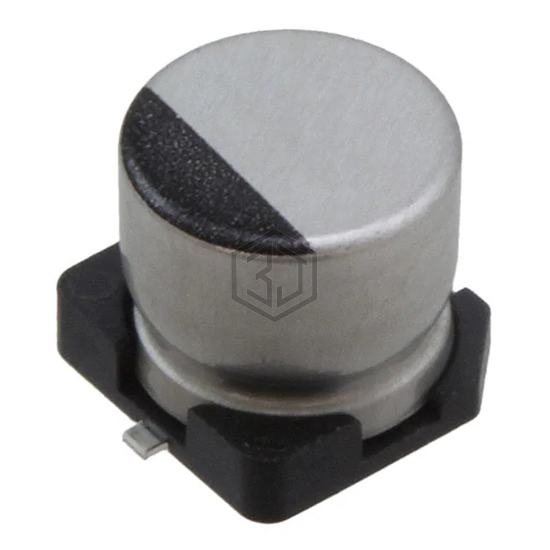

CAP ALUM 1000UF 20% 16V SMD
16SGV1000M16X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,436
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 756 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1A102AL | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 82% | View |
| EEV-FK1E102V | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V SMD | 71% | View |
| 50SGV1000M18X21.5 | Rubycon | CAP ALUM 1000UF 20% 50V SMD | 66% | View |
| EEV108M6R3A9MAA | KEMET | CAP ALUM 1000UF 20% 6.3V SMD | 64% | View |
| MAL224699605E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V SMD | 61% | View |
| 865060153010 | Würth Elektronik | CAP ALUM 1000UF 20% 6.3V SMD | 58% | View |
Submit your RFQ for 16SGV1000M16X16.5 and get a quote within 24 hours.
