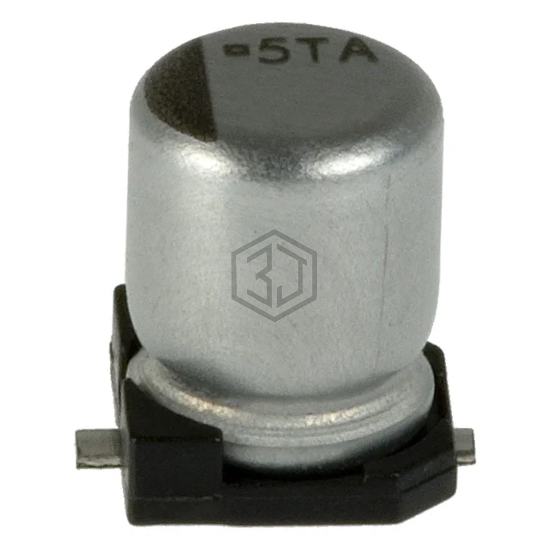

CAP ALUM 1UF 20% 50V SMD
EMVK500ADA1R0MD55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,427
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EMVK500ADA1R0MD55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1H010MCL1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 96% | View |
| TYEH1H105D55MTR | TE Connectivity Passive Product | CAP ALUM 1UF 20% 50V SMD | 93% | View |
| MAL215371108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 50V SMD | 93% | View |
| EDH105M050A9BAA | KEMET | CAP ALUM 1UF 20% 50V SMD | 81% | View |
| EEE-HB1H1R0AR | Panasonic Electronic Components | CAP ALUM 1UF 20% 50V SMD | 81% | View |
| UUD1H010MCL1GS | Nichicon | CAP ALUM 1UF 20% 50V SMD | 68% | View |
