CAP ALUM 1UF 20% 50V SMD

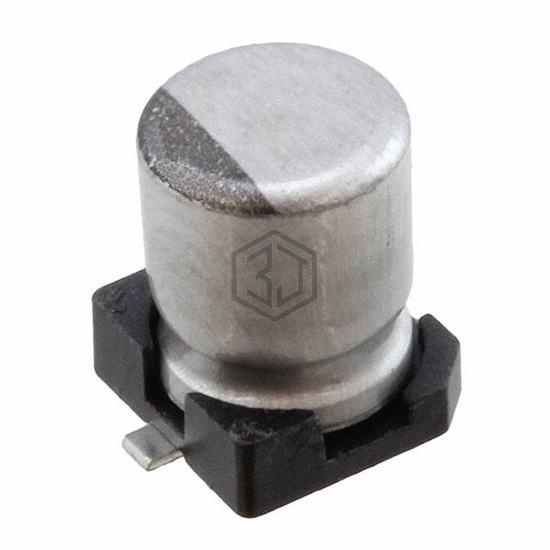

UWZ1H010MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,264
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 6.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 9.45 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1H010MCR1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 100% | View |
| MAL215371108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 50V SMD | 97% | View |
| AVES105M50B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1UF 20% 50V SMD | 95% | View |
| EMVY500ADA1R0MD55G | United Chemi-Con | CAP ALUM 1UF 20% 50V SMD | 61% | View |
| UWG1H010MCL1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 53% | View |
| UUD1H010MCL1GS | Nichicon | CAP ALUM 1UF 20% 50V SMD | 53% | View |
Submit your RFQ for UWZ1H010MCL1GB and get a quote within 24 hours.
