CAP ALUM 1UF 20% 50V SMD

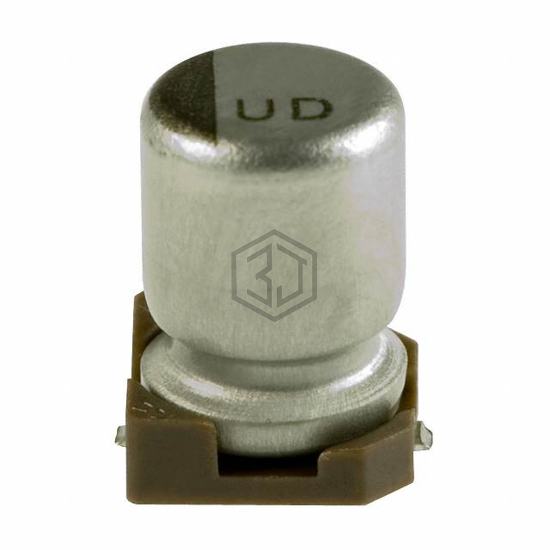

UUD1H010MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,264
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVEZ105M50B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 1UF 20% 50V SMD | 89% | View |
| UT105M050HCHTA | Aillen | CAP. ALUM 1UF 50V 20% SMD | 80% | View |
| MAL215371108E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 50V SMD | 75% | View |
| 105SMH050MHR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 50V SMD | 74% | View |
| 35SZV1M4X5.5 | Rubycon | CAP ALUM 1UF 20% 35V SMD | 69% | View |
| 105SVL050MCW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1UF 20% 50V SMD | 63% | View |
Submit your RFQ for UUD1H010MCL1GS and get a quote within 24 hours.
