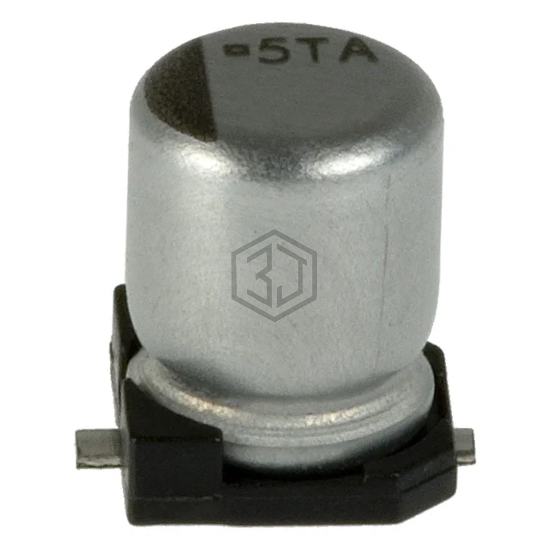

CAP ALUM 10UF 20% 16V SMD
EMVK160ADA100MD55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,536
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EMVK160ADA100MD55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SKV10M4X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 93% | View |
| UUP1A100MCL1GS | Nichicon | CAP ALUM 10UF 20% 10V SMD | 79% | View |
| UUP1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 65% | View |
| AFK106M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 16V SMD | 64% | View |
| EMVY250ADA100ME55G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 53% | View |
| EEE-HB1V100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 53% | View |
