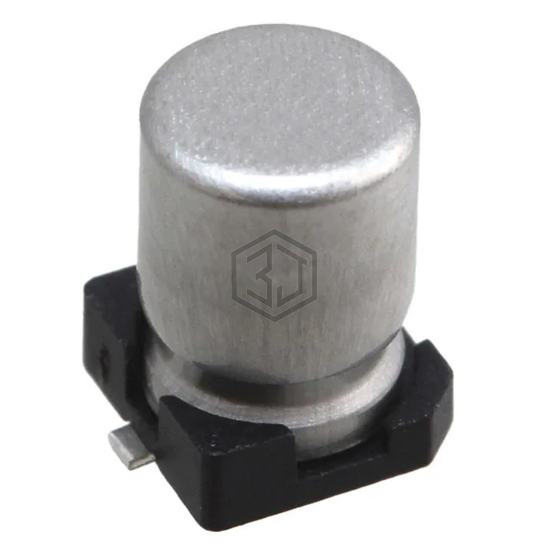

CAP ALUM 10UF 20% 10V SMD
UUP1A100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,618
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 25.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SKV10M4X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 78% | View |
| 106SMH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 16V SMD | 62% | View |
| UWZ1V100MCL1GB | Nichicon | CAP ALUM 10UF 20% 35V SMD | 60% | View |
| UUP1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 57% | View |
| UUA1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 51% | View |
| AVEZ106M10B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 10V SMD | 51% | View |
Submit your RFQ for UUP1A100MCL1GS and get a quote within 24 hours.
