CAP ALUM 10UF 20% 25V SMD

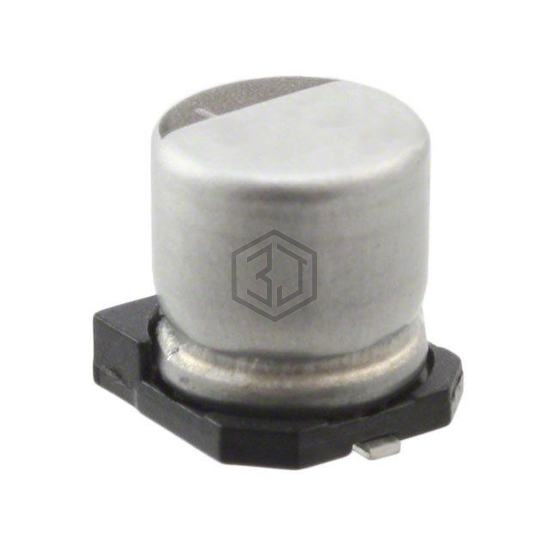

EMVY250ADA100ME55G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,272
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK106M25B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V SMD | 83% | View |
| AFK106M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 35V SMD | 75% | View |
| AFK106M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 16V SMD | 72% | View |
| UUP1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 71% | View |
| UUX1J100MCL1GS | Nichicon | CAP ALUM 10UF 20% 63V SMD | 69% | View |
| EEE-FK1K100XP | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 65% | View |
Submit your RFQ for EMVY250ADA100ME55G and get a quote within 24 hours.
