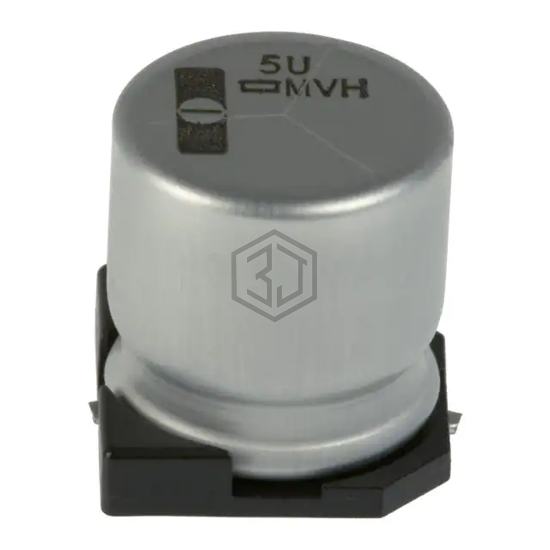

CAP ALUM 47UF 20% 100V SMD
EMVH101ARA470MKE0S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 8,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 330mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1K470AQ | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 78% | View |
| EEV-TG1K470Q | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 77% | View |
| UCJ1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 69% | View |
| EEE-TC1V470XV | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 67% | View |
| EEE-TP1V470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 66% | View |
| MAL214097801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 66% | View |
Submit your RFQ for EMVH101ARA470MKE0S and get a quote within 24 hours.
