Panasonic Electronic Components
CAP ALUM 47UF 20% 80V SMD

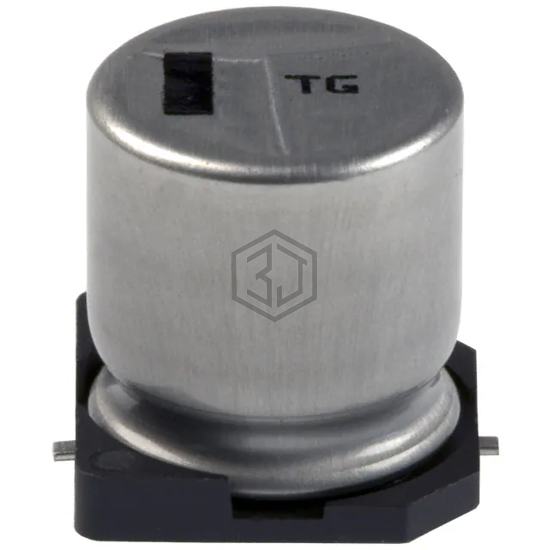

EEV-TG1K470Q is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 8,131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 420mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 162.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1K470AQ | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 97% | View |
| EMVH630ADA470MJA0G | United Chemi-Con | CAP ALUM 47UF 20% 63V SMD | 83% | View |
| UCJ1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 79% | View |
| MAL214097801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 78% | View |
| EMVH101ARA470MKE0S | United Chemi-Con | CAP ALUM 47UF 20% 100V SMD | 77% | View |
| EEE-TP1V470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 75% | View |
