Panasonic Electronic Components

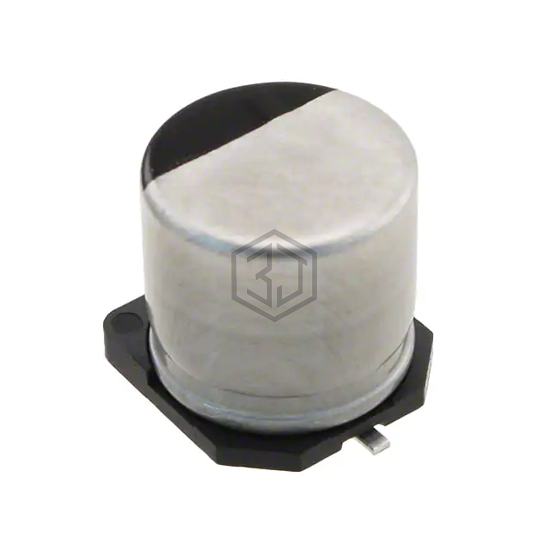

CAP ALUM 47UF 20% 35V SMD
EEE-TP1V470AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 175.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TC1V470XV | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 95% | View |
| EDT476M035A9MAA | KEMET | CAP ALUM 47UF 20% 35V SMD | 84% | View |
| UCJ1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 83% | View |
| EEV-TG1K470Q | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 75% | View |
| EDT476M050A9MAA | KEMET | CAP ALUM 47UF 20% 50V SMD | 73% | View |
| EMVH630ADA470MJA0G | United Chemi-Con | CAP ALUM 47UF 20% 63V SMD | 69% | View |
