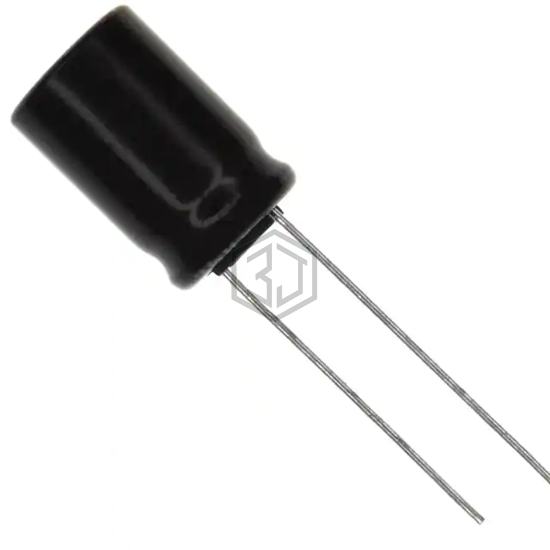

CAP ALUM 47UF 20% 160V RADIAL
EKXG161ELL470MJ20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB05FE247S00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 200V RADIAL | 79% | View |
| UBT1J470MPD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 68% | View |
| 420TXW47MEFR12.5X35 | Rubycon | CAP ALUM 47UF 20% 420V RADIAL | 67% | View |
| B43504A9476M67 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 400V SNAP | 63% | View |
| SEK470M400ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 400V RADIAL | 60% | View |
| UCY2V470MHD3TN | Nichicon | CAP ALUM 47UF 20% 350V RADIAL | 56% | View |
