Cornell Dubilier Electronics (CDE)
CAP ALUM 47UF 20% 400V RADIAL

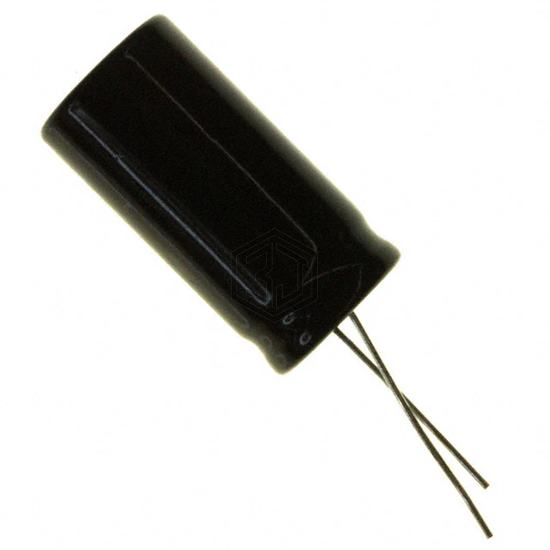

SEK470M400ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,164
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 5.65Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 240 mA @ 120 Hz |
| Ripple Current @ High Frequency | 432 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A9476M67 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 400V SNAP | 84% | View |
| UVZ2E470MHH | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | 77% | View |
| 420TXW47MEFR12.5X35 | Rubycon | CAP ALUM 47UF 20% 420V RADIAL | 73% | View |
| UBT1J470MPD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 72% | View |
| UPM2A470MHD6TO | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 68% | View |
| EKXG161ELL470MJ20S | United Chemi-Con | CAP ALUM 47UF 20% 160V RADIAL | 60% | View |
Submit your RFQ for SEK470M400ST and get a quote within 24 hours.
