CAP ALUM 47UF 20% 63V RADIAL

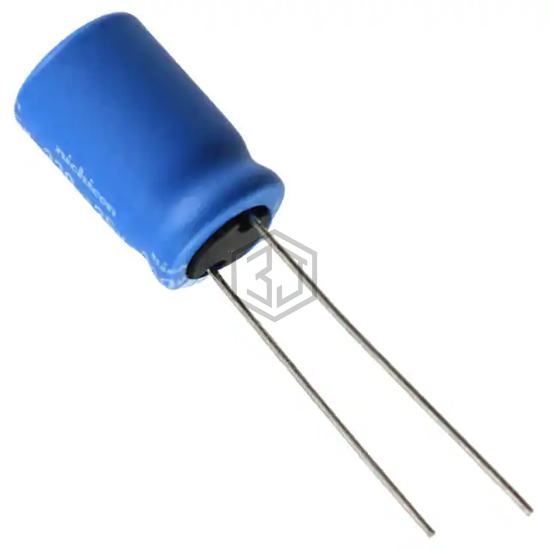

UBT1J470MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 265 mA @ 120 Hz |
| Ripple Current @ High Frequency | 530 mA @ 100 kHz |
| Impedance | 590 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1K470MPD1TD | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 86% | View |
| TBE1H470MCD1LZ | Nichicon | CAP ALUM 47UF 20% 50V AXIAL | 85% | View |
| TBE1H470MCD | Nichicon | CAP ALUM 47UF 20% 50V AXIAL | 85% | View |
| EEU-TA1J470SB | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V RADIAL | 82% | View |
| MAL212029479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 100V AXIAL | 71% | View |
| 50RX3047MTA8X11.5 | Rubycon | CAP ALUM 47UF 20% 50V RADIAL | 68% | View |
Submit your RFQ for UBT1J470MPD and get a quote within 24 hours.
