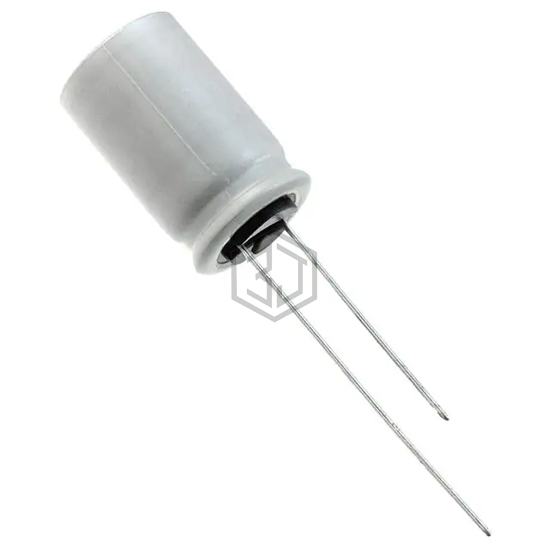

CAP ALUM 270UF 20% 80V RADIAL
EGPD800ELL271MK20H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 270UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 4,105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 72mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.64 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD101ELL271ML20H | United Chemi-Con | CAP ALUM 270UF 20% 100V RADIAL | 83% | View |
| UBY2A271MHL | Nichicon | CAP ALUM 270UF 20% 100V RADIAL | 80% | View |
| UBW1K221MHD | Nichicon | CAP ALUM 220UF 20% 80V RADIAL | 79% | View |
| UBW1J221MHD | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 64% | View |
| EEU-TP1V271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 62% | View |
| EEU-TP1V271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for EGPD800ELL271MK20H and get a quote within 24 hours.
