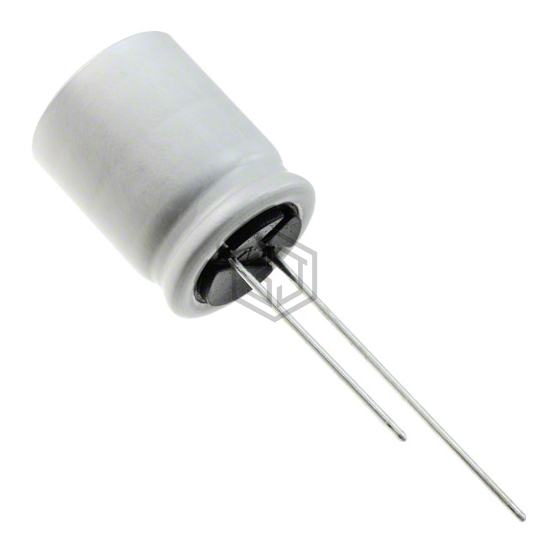

CAP ALUM 270UF 20% 100V RADIAL
EGPD101ELL271ML20H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 270UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,936
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 67mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.025 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for EGPD101ELL271ML20H and get a quote within 24 hours.
