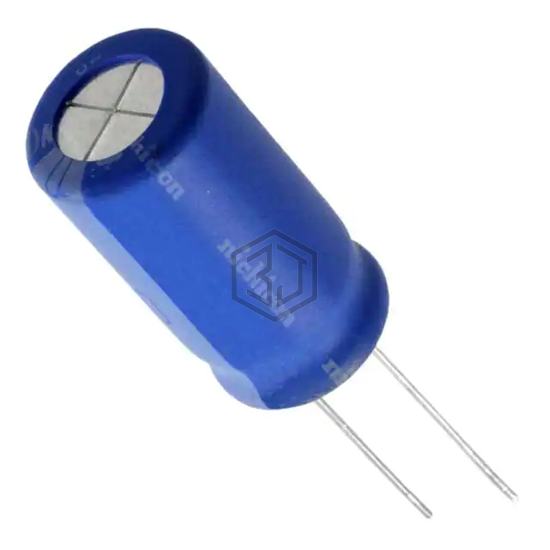

CAP ALUM 220UF 20% 80V RADIAL
UBW1K221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 620 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.24 A @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1J221MHD | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 85% | View |
| UBX1J221MHL1TO | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 84% | View |
| UBW2A221MHD1TN | Nichicon | CAP ALUM 220UF 20% 100V RADIAL | 80% | View |
| MAL216031221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 76% | View |
| UBW1H221MPD | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 67% | View |
| UBX1H221MPL | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 59% | View |
Submit your RFQ for UBW1K221MHD and get a quote within 24 hours.
