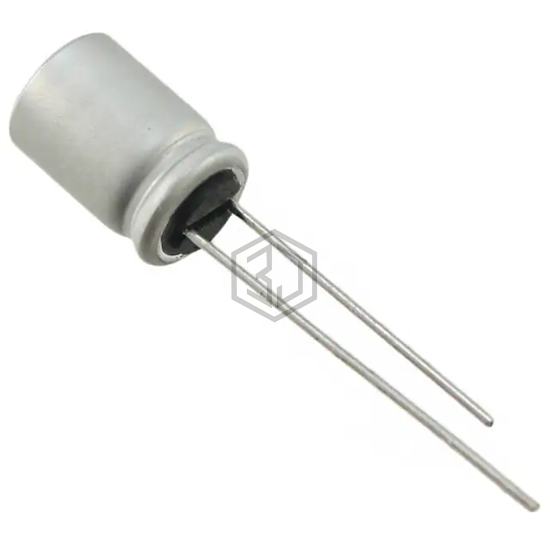

CAP ALUM POLY 680UF 20% 2.5V T/H
APS-2R5ELL681MHB5S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 680UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 5,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.23 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNE0E681MDN1PX | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 98% | View |
| PLS0E681MCL2TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 90% | View |
| RL80E821MDN1PX | Nichicon | CAP ALUM POLY 820UF 20% 2.5V T/H | 85% | View |
| A750EK687M0JAAE008 | KEMET | CAP ALUM POLY 680UF 20% 6.3V T/H | 70% | View |
| UPE1E681MP51012R | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| 4SEP680M | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 4V T/H | 69% | View |
