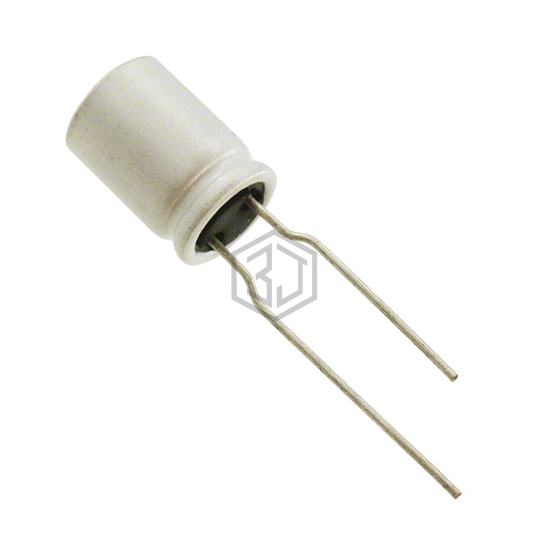

CAP ALUM POLY 680UF 20% 2.5V T/H
RNE0E681MDN1PX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 680UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 6,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF0E681MCO6TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 99% | View |
| APS-2R5ELL681MHB5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 2.5V T/H | 98% | View |
| PLS0E681MCL2TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 93% | View |
| RHT0J681MDN1PH | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 74% | View |
| UPC1C681MNN0811F3 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 71% | View |
| UGS1D681RP30816TU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
