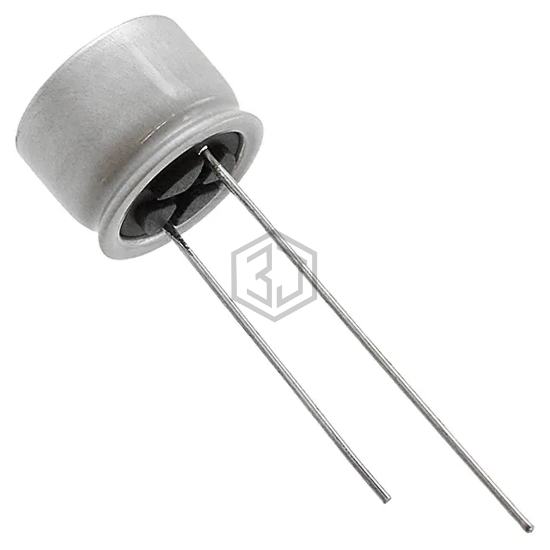

Panasonic Electronic Components
CAP ALUM POLY 680UF 20% 4V T/H
4SEP680M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 680UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 185 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLS0E681MCL2TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 79% | View |
| A758KK687M0JAAE014 | KEMET | CAP ALUM POLY 680UF 20% 6.3V T/H | 78% | View |
| A750EK687M0JAAE008 | KEMET | CAP ALUM POLY 680UF 20% 6.3V T/H | 72% | View |
| PLF0E681MCO6TD | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 72% | View |
| APS-2R5ELL681MHB5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 2.5V T/H | 69% | View |
| UGS1D681RP30816TU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 64% | View |
Submit your RFQ for 4SEP680M and get a quote within 24 hours.
