Union Semiconductor (HK) Limited
USB 2.0 DPDT SWITCH

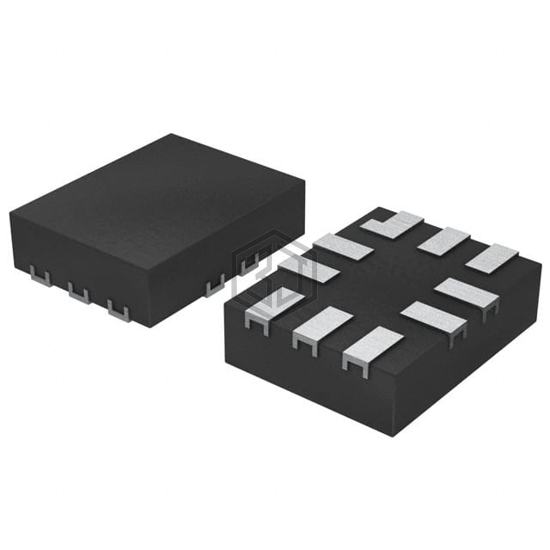

UM7222 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. USB 2.0 DPDT SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-UFQFN, number of circuits 2.
In Stock: 6,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 9Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 2.7V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| -3db Bandwidth | 550MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 4.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -48dB @ 250MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-QFN (1.8x1.4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UM7222MA | Union Semiconductor (HK) Limited | USB 2.0 DPDT SWITCH | 100% | View |
| TMUX154EDGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 82% | View |
| RS2266XM | Runic Technology | IC SWITCH DUAL SPST 8MSOP | 73% | View |
| 74HCT2G66DP,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8TSSOP | 62% | View |
| 74HCT2G66DC,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8VSSOP | 62% | View |
| DG721DN-T1-GE4 | Vishay Siliconix | IC SWITCH DUAL SPST 8DFN | 61% | View |
Submit your RFQ for UM7222 and get a quote within 24 hours.
