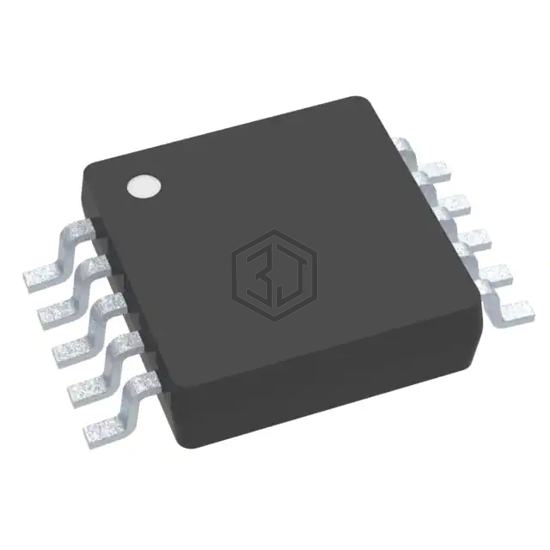

IC SWITCH SPDT DUAL 10VSSOP
TMUX154EDGSR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT DUAL 10VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 1,140
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| -3db Bandwidth | 900MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 7.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -97dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UM7222 | Union Semiconductor (HK) Limited | USB 2.0 DPDT SWITCH | 82% | View |
| UM7222MA | Union Semiconductor (HK) Limited | USB 2.0 DPDT SWITCH | 82% | View |
| DG9411EDL-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SC70 | 62% | View |
| 74HCT2G66DP,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8TSSOP | 59% | View |
| 74HCT2G66DC,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8VSSOP | 59% | View |
| 74HCT2G66GD,125 | NXP USA Inc. | 74HCT2G66GD - SPST, 2 FUNC, 1 C | 59% | View |
Submit your RFQ for TMUX154EDGSR and get a quote within 24 hours.
