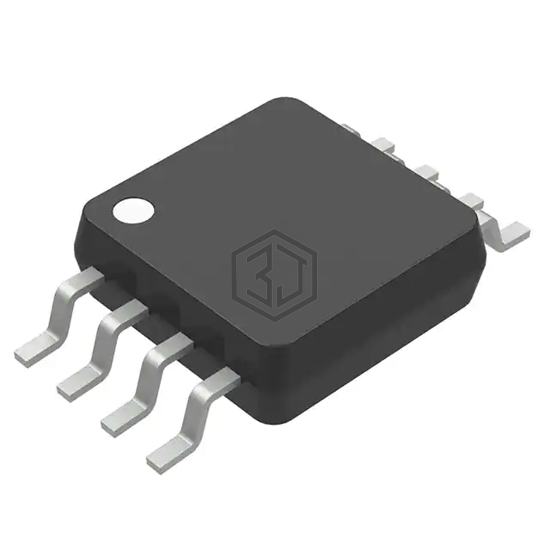

IC SWITCH DUAL SPST 8MSOP
RS2266XM is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Runic Technology. IC SWITCH DUAL SPST 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 3,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 30ns (Typ), 25ns (Typ) |
| -3db Bandwidth | 300MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RS2299XTQC16 | Runic Technology | IC SWITCH QUAD SPDT 16QFN | 94% | View |
| RS2166XF5 | Runic Technology | IC SWITCH SPST SOT23-5 | 94% | View |
| 74HCT2G66DP,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8TSSOP | 77% | View |
| 74HCT2G66DC,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8VSSOP | 77% | View |
| 74HCT2G66GD,125 | NXP USA Inc. | 74HCT2G66GD - SPST, 2 FUNC, 1 C | 77% | View |
| 74HCT1G66GW,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSSOP | 64% | View |
