IC GATE DRVR HALF-BRIDGE 8SOIC

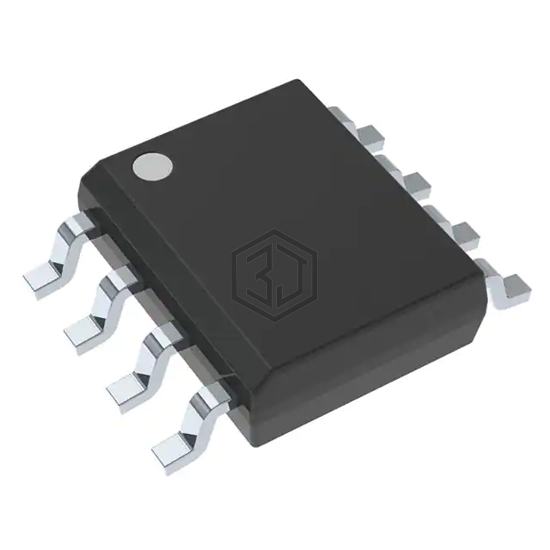

LM5109MAX/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 1,140
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
LM5109MAX/NOPB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5109ASD | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 99% | View |
| MIC4605-2YM-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 92% | View |
| MIC4606-1YML-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 16QFN | 85% | View |
| DGD0590FU-7 | Diodes Incorporated | IC GATE DRV HALFBRD QFN3030-8 3K | 77% | View |
| 2ED020I12FIXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE DSO18-2 | 75% | View |
| 2EDF7175FXUMA2 | Infineon Technologies | IC GATE DRVR HALF-BRIDG DSO16 | 73% | View |
