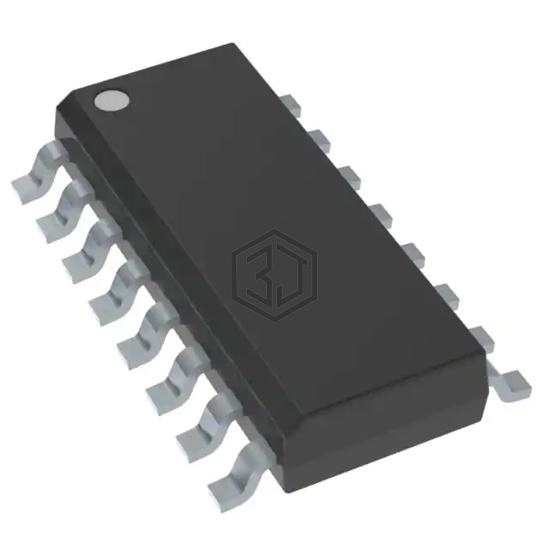

IC GATE DRVR HALF-BRIDG DSO16
2EDF7175FXUMA2 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDG DSO16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 20V, package / case 16-SOIC (0.154", 3.90mm Width).
In Stock: 7,384
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 20V |
| Logic Voltage - VIL, VIH | -, 1.65V |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 6.5ns, 4.5ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-16-11 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2ED020I12FIXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE DSO18-2 | 77% | View |
| HIP2104FRAANZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 12DFN | 74% | View |
| IR2011SPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 64% | View |
| LM25101CMAX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 63% | View |
| LM25101CSDX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 63% | View |
| MIC4605-2YMVAO | Microchip Technology | IC GATE DRVR HALF-BRIDGE 85V | 62% | View |
Submit your RFQ for 2EDF7175FXUMA2 and get a quote within 24 hours.
