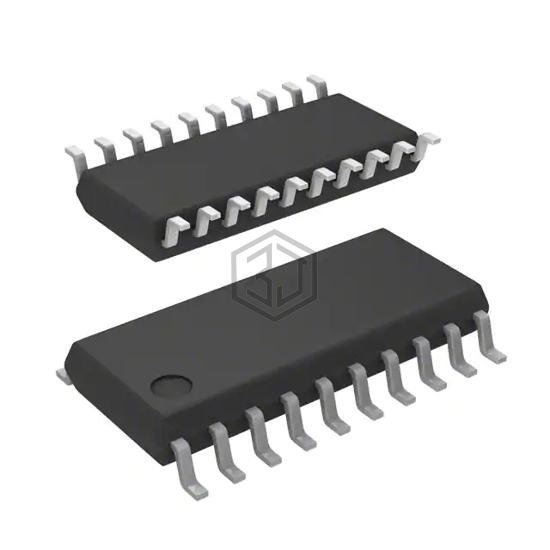

IC GATE DRVR HALF-BRIDGE DSO18-2
2ED020I12FIXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE DSO18-2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 14V ~ 18V, package / case 18-SOIC (0.295", 7.50mm Width).
In Stock: 4,177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 14V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-18-2 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN3278TMX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 92% | View |
| STDRIVEG612QTR | STMicroelectronics | HIGH VOLTAGE AND HIGH-SPEED HALF | 80% | View |
| IRS2011SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 78% | View |
| MCZ33883EG | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 20SOIC | 75% | View |
| IR2011SPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 73% | View |
| DGD0590FU-7 | Diodes Incorporated | IC GATE DRV HALFBRD QFN3030-8 3K | 66% | View |
Submit your RFQ for 2ED020I12FIXUMA1 and get a quote within 24 hours.
