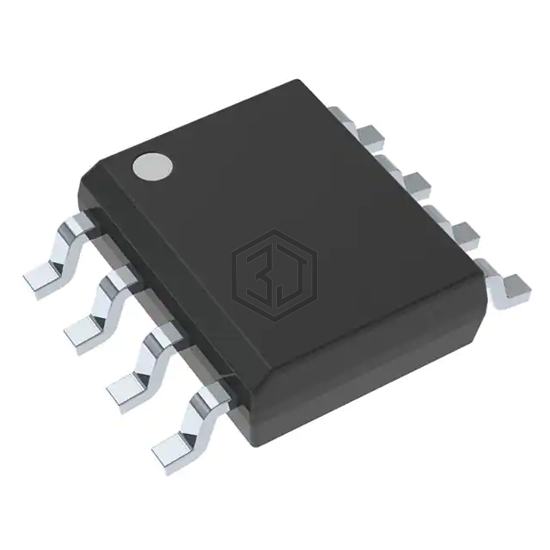

IC GATE DRVR HALF-BRIDGE 8SOIC
LM5109MAX is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 1,396
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
LM5109MAX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5109ASDX | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 99% | View |
| FAN3278TMX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 96% | View |
| MIC4606-1YML-T5 | Microchip Technology | IC GATE DRVR HALF-BRIDGE 16QFN | 85% | View |
| IR2085STR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 83% | View |
| MCZ33883EG | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 20SOIC | 83% | View |
| LM5100CMY/NOPB-NS | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 71% | View |
Submit your RFQ for LM5109MAX and get a quote within 24 hours.
