HALF BRIDGE BASED MOSFET DRIVER,

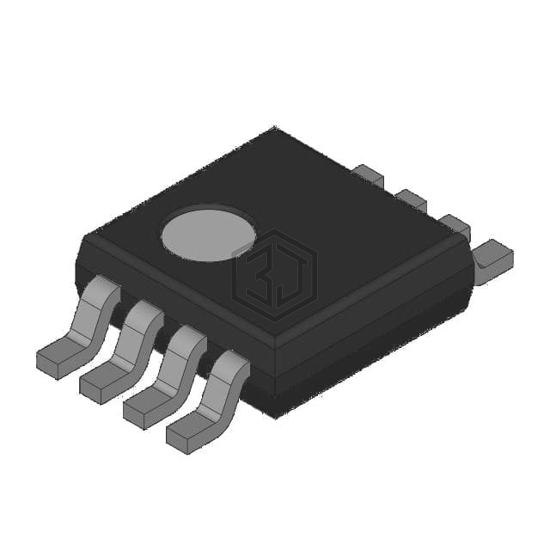

LM5100CMY/NOPB-NS is a PMIC - Gate Drivers manufactured by National Semiconductor. HALF BRIDGE BASED MOSFET DRIVER,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 9,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 2.3V, - |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 990ns, 715ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-PowerPad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5100CSD/NOPB | Texas Instruments | HALF BRIDGE BASED MOSFET DRIVER, | 100% | View |
| LM5100CSDX | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 100% | View |
| LM5101CSD | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 100% | View |
| IR2085STR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 77% | View |
| LM5109AMA/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 70% | View |
| FAN3278TMX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 65% | View |
Submit your RFQ for LM5100CMY/NOPB-NS and get a quote within 24 hours.
