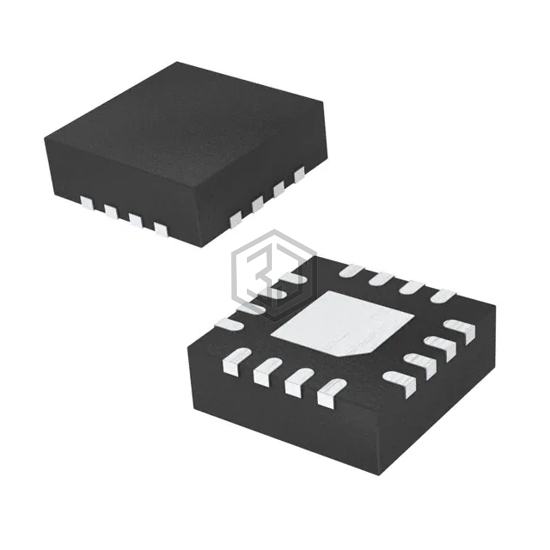

IC GATE DRVR HALF-BRIDGE 16QFN
MIC4606-1YML-T5 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HALF-BRIDGE 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5.25V ~ 16V, package / case 16-VQFN Exposed Pad.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Driven Configuration | Full-Bridge |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5.25V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 108 V |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
MIC4606-1YML-T5 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCZ33883EG | NXP USA Inc. | IC GATE DRVR HALF-BRIDGE 20SOIC | 99% | View |
| FAN3278TMX | onsemi | IC GATE DRVR HALF-BRIDGE 8SOIC | 86% | View |
| LM5109ASDX | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 85% | View |
| LM5109SD | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 85% | View |
| LM5109MAX | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 85% | View |
| LM5100CMY/NOPB-NS | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 59% | View |
Submit your RFQ for MIC4606-1YML-T5 and get a quote within 24 hours.
