IC MOTOR DRIVER

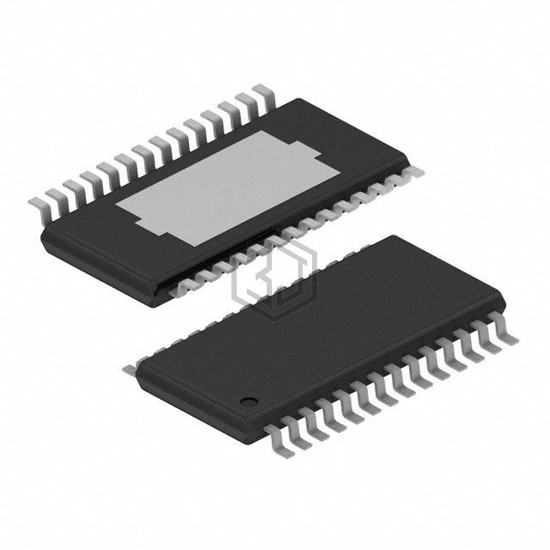

DRV8955PPWPR is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. IC MOTOR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 48V, package / case 28-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 3,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Solenoids, Stepper Motors |
| Interface | Analog, Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | NMOS, Power MOSFET |
| Rds On (Typ) | 165mOhm |
| Current - Output / Channel | 10A |
| Current - Peak Output | 10A |
| Voltage - Supply | 4.5V ~ 48V |
| Voltage - Load | 4.5V ~ 48V |
| Operating Temperature | -40°C ~ 125°C |
| Features | Charge Pump |
| Fault Protection | Over Current, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8955PRGER | Texas Instruments | 48V, 2A QUAD HALF BRIDGE DRIVER | 100% | View |
| DRV8962DDVR | Texas Instruments | 65-V FOUR-CHANNEL HALF-BRIDGE DR | 95% | View |
| DRV8962DDWR | Texas Instruments | 65-V SINGLE/DUAL H-BRIDGE OR QUA | 69% | View |
| DRV8432DKD | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 67% | View |
| DRV8432DKDR | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 67% | View |
| DRV8904QPWPRQ1 | Texas Instruments | AUTO MULTI-CHANNEL HALF BRIDGER | 66% | View |
Submit your RFQ for DRV8955PPWPR and get a quote within 24 hours.
