AUTO MULTI-CHANNEL HALF BRIDGER

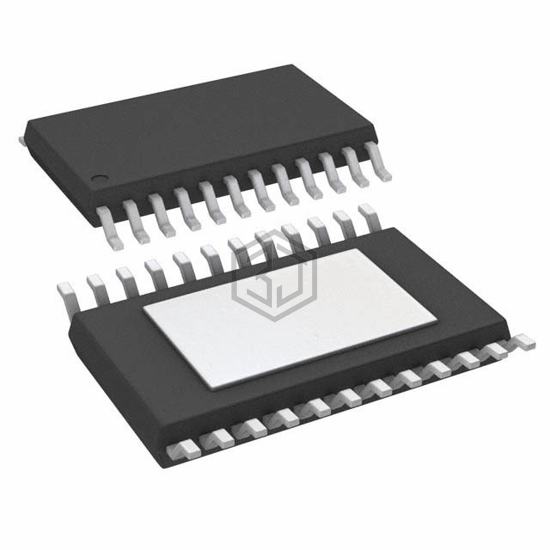

DRV8904QPWPRQ1 is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. AUTO MULTI-CHANNEL HALF BRIDGER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 7,398
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM, SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | MOSFET (Metal Oxide) |
| Rds On (Typ) | 750mOhm LS, 750mOhm HS |
| Current - Output / Channel | 6A |
| Current - Peak Output | - |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Charge Pump, Slew Rate Controlled |
| Fault Protection | Over Current, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8432DKD | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 60% | View |
| DRV8432DKDR | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 60% | View |
| DRV8935PRGER | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 51% | View |
| DRV8935PPWPR | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 51% | View |
Submit your RFQ for DRV8904QPWPRQ1 and get a quote within 24 hours.
