Analog Devices Inc./Maxim Integrated
36V H-BRIDGE TRANSFORMER DRIVER

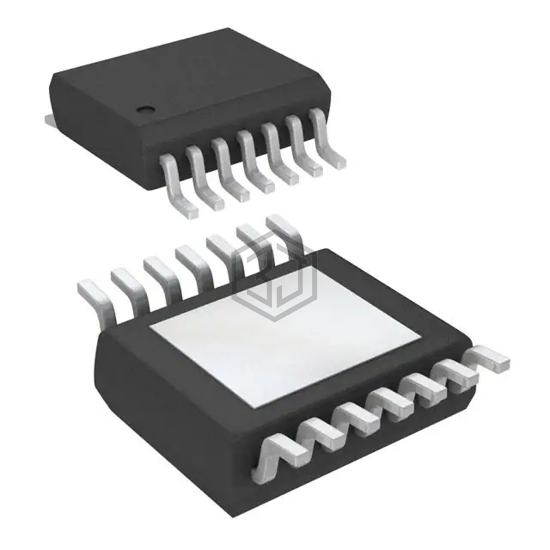

MAX22258AUD+ is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc./Maxim Integrated. 36V H-BRIDGE TRANSFORMER DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 36V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 9,048
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | Logic |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | - |
| Rds On (Typ) | 260mOhm LS, 520mOhm HS |
| Current - Output / Channel | 1A |
| Current - Peak Output | 1A |
| Voltage - Supply | 5V ~ 36V |
| Voltage - Load | 5V ~ 36V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Current, Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-TSSOP-EP |
